Sublimation Machine

Our Products Features :

·Far Infrared Blackbody Tube Radiation
  Electro thermal Heating
·Intelligent PID Temperature Control
·Digital Tension Control
·Feeding and Taking up Are synchronous
·Vacuum Fan Delivery Is Controllable
·Quick Tail Gas Treatment
·Convenient to Maintain
·Easy to Set up and Operate

Easy to load the media in and out oven during your machine working
Easy to open the caver to clean inside of oven
Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
Easy to change the active carbon from the filter
Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs

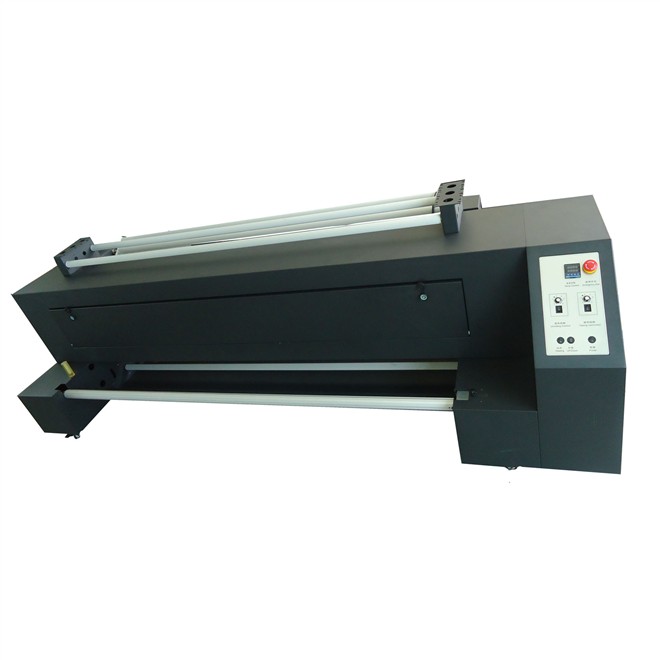

SR1800 sublimation machine

Our Oven Machine Specification:

Power	3.8KW
Working Width	1800MM
Blackbody Tube Working Model	Far Infrared
Heat Tuble Dimension	2220MM
Working Temperture	100 to 250 °C
Tension	0 to 1.2Kg
Working Voltage Take Up working Method Take Up media diameter(roll to roll)	220~240V 50HZ Directly out or Roll to Roll. 300mm
Weight	330Kg
Certification	CE Certificated
Package	High intensity standard carton package Non Fumigation
Available Printer	Mimaki, Roland , Mutoh and any Piazo Printer



Our Filter Fans Specificaton:

Power	360W
Working Voltage	220~240V 50HZ
Weight	60 Kg
Input Air temperature	>200 °C
Out put Air temperature	<25 °C
Filter Medium	Active Carbon
Certification	CE Certificated
